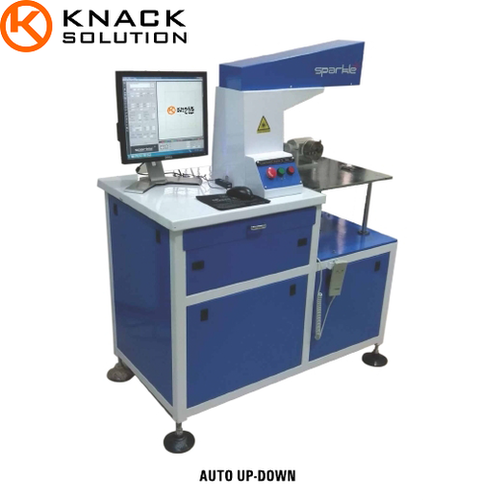

Laser Marking and Engraving Machine

Next > >

Send Inquiry

Product Code : KS 19

Brand Name : KNACK SOLUTION

Price And Quantity

Minimum Order Quantity
as per product
Unit of Measure
Unit/Units

Product Description

Leveraging on our vast industry experience, we manufacture and supply a wide range of Laser Marking Machine that is extensively used marking on metals and non-metals. Under the stern surveillance of our highly skilled experts, the offered machine is rigorously examined on numerous quality measures. The complete assortment of laser marking machine is highly renowned for its marking mechanism, high efficiency, less maintenance, corrosion resistance and longer life.

Features:

Unmatched performance
Low power consumption
Power efficient
Easy to operate

Specification :

Laser Type	Pulsed Fiber Laser
Average output power Wavelength	20 W (Optional 5/10/30/50 W) 1064 nm
Output Power Stability (Typical) Power Adjusting Range	5% 1 ~ 100
Resolution Frequency Beam Quality (M2)	20-80 KHz < 2
Output Beam Diameter ( 1/e2) Max. Linear Speed	6-9 mm 8000 mm/s
Marking Depth Min. Line Width	0.01~0.3 mm (Material Depended) 003mm
Min. Character Height Repetition Accuracy	0.2 mm 0.2 pm
Work Station / Table
Marking Area	150 x 150 (Optional 220 x 220/ 300 x 30omm)
Working Table	450 mm X 450 mm
Remote Based Up Down	Load Capacity up to 100 kg
Max Up Down	300 mm
Electrical
Power Supply Single Phase	220V / 50Hz
Power Consumption	500 W
Ambient Temperature Range	0^oC to 25^oC
Cooling System	Air Cooling System
Attachment
Rotary Attachment	Yes (Optional)
Foot Switch	Yes
Red Alignment Laser	Yes
Support Custom Automation	Yes (Based on requirements)
Computer Specification
System	Intel i3 CPU
Configuration	Higher
Monitor	17" square LCD
Accessories	Yes
Dimension
Length X Width X Height	1100 mm x 540 mm x 1400 mm
Weight	110 kg
