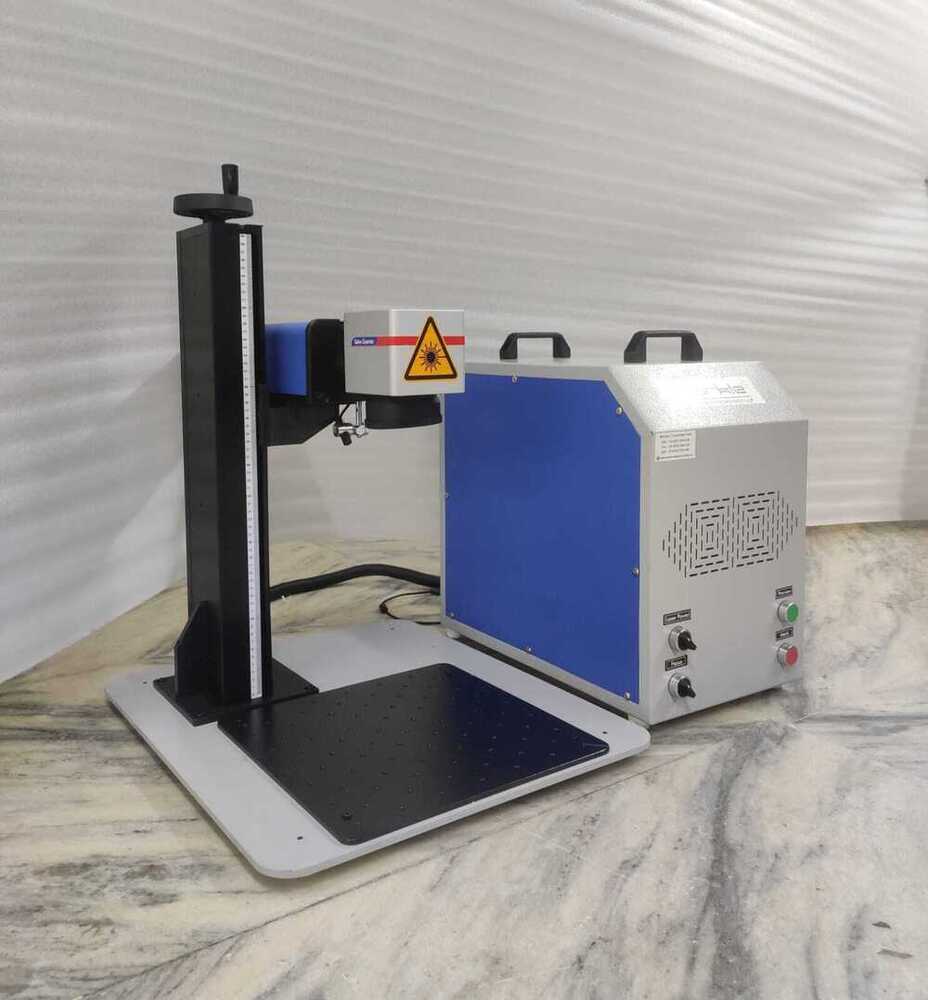

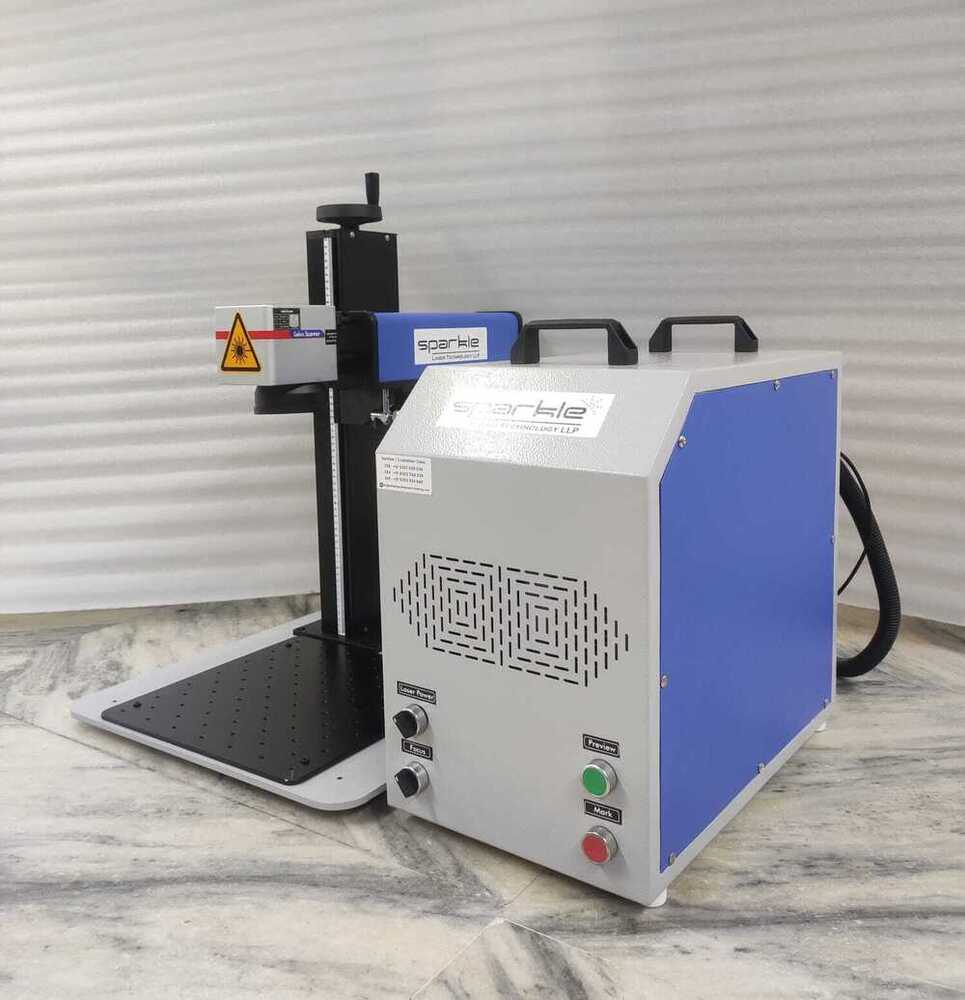

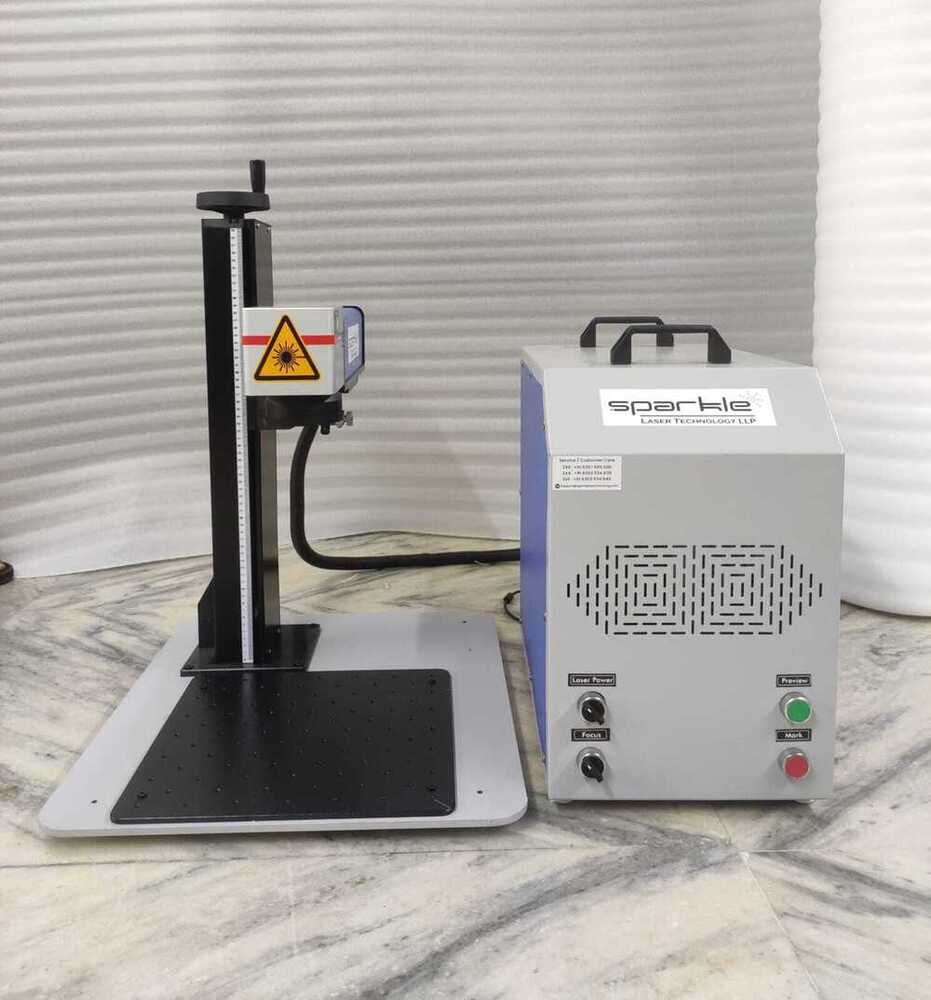

Mini Laser Marking Machine

Mini Laser Marking Machine
Mini Laser Marking Machine
Send Inquiry
Product Code : KSIND-FL-TTZ-A
Brand Name : Sparkle
Product Description

We are a well-known manufacturer and supplier in the domain, engaged in offering excellent quality Jewellery Hallmarking Machine. This is utilized for the jewelry of hallmarking. With a sharp beam structure, it is superb suited for fine and small graphic and character marking application. Our rich expertise and years of experience has assisted us in fulfilling the demands of global customers with utmost proficiency. These jewellery hallmarking machines can be availed in diverse specifications that can be easily customized on need at very economic prices.

Features:

  • Mini Size
  • High efficiency
  • Hassle-free functionality
  • Low power consumption
  • Long operational life

Specification :

Laser Source

20 W CW

Laser Type

DPSS

Diode

Hi-Tech / Northrop Grumman / Premium

Wavelength

1064 mm

Beam Mode

TEM 00

Q-Switched O/P

24 Watt @ 10 KHz

Beam Polarization

Linear

Pulse Repetition Rate

1 to 20 KHz

Laser Class

IV

CNC System

Axis Travel ( X,Y,Z

130 x 130 x 70 mm

Resolution

4000 steps / mm

Accuracy

+ 2 micron

Repeatability

+ 1 micron

Drive

AC / DC Servo

Electrical

Power Consumption

1 Phase, 230V AC, 12-15 AMP, 1.8 KW

Temperature

20oC to 30oC

Chiller Cooling Capacity

1200 Watt

Dimension

Length x Width x Height

1560 mm X 650 mm X 1450 mm

Weight

300 Kg (Approx)

Computer specification

Processor

Intel Ãƒâ€šÃ‚® Core i3

Screen

17 Inch LCD

Resolution

Higher

Trade Information
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA)
  • Main Domestic Market
  • All India
