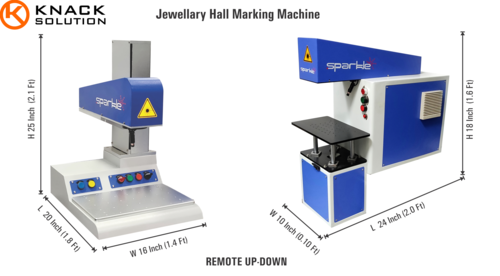

Send InquiryJewellery Laser Marking Machine
Price 252100.00 INR/ Unit
MOQ : 1 Unit
Jewellery Laser Marking Machine Specification
- Product Type
- Marking Machine
- General Use
- For Marking Use
- Material
- Stainless Steel
- Computerized
- Yes
- Automatic
- Yes
- Control System
- PLC Control
- Cooling Mode
- Air Cooling
- Voltage
- 220 Volt (v)
- Feature
- Simple Control
- Warranty
- 12 Months
Jewellery Laser Marking Machine Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 1 Unit Per Week
- Delivery Time
- 1 Week
- Main Domestic Market
- All India
About Jewellery Laser Marking Machine
We are a well-known manufacturer and supplier in the domain, engaged in offering excellent quality Jewellery Hallmarking Machine. This is utilized for the jewelry of hallmarking. With a sharp beam structure, it is superb suited for fine and small graphic and character marking application. Our rich expertise and years of experience has assisted us in fulfilling the demands of global customers with utmost proficiency. These jewellery hallmarking machines can be availed in diverse specifications that can be easily customized on need at very economic prices.
Features:
- Mini Size
- High efficiency
- Hassle-free functionality
- Low power consumption
- Long operational life
Specification :
|
Laser Source |
20 W CW |
|
Laser Type |
DPSS |
|
Diode |
Hi-Tech / Northrop Grumman / Premium |
|
Wavelength |
1064 mm |
|
Beam Mode |
TEM 00 |
|
Q-Switched O/P |
24 Watt @ 10 KHz |
|
Beam Polarization |
Linear |
|
Pulse Repetition Rate |
1 to 20 KHz |
|
Laser Class |
IV |
|
CNC System |
|
|
Axis Travel ( X,Y,Z |
130 x 130 x 70 mm |
|
Resolution |
4000 steps / mm |
|
Accuracy |
+ 2 micron |
|
Repeatability |
+ 1 micron |
|
Drive |
AC / DC Servo |
|
Electrical |
|
|
Power Consumption |
1 Phase, 230V AC, 12-15 AMP, 1.8 KW |
|
Temperature |
20 deg C to 30 deg C |
|
Chiller Cooling Capacity |
1200 Watt |
|
Dimension |
|
|
Length x Width x Height |
1560 mm X 650 mm X 1450 mm |
|
Weight |
300 Kg (Approx) |
|
Computer specification |
|
|
Processor |
Intel - Core i3 |
|
Screen |
17 Inch LCD |
|
Resolution |
Higher |
